BravePro® Hydra Buddy™ Skid-Mount Hydraulic Power Pack (HBHS610GXE)
BravePro HBHS610GXE Hydra Buddy Skid-Mount Hydraulic Power Pack – Honda GX630, 12 GPM
The BravePro HBHS610GXE Hydra Buddy Skid-Mount Hydraulic Power Pack is a heavy-duty portable hydraulic power unit designed for job sites, trailers, and applications where electric power or compressed air is not available. Powered by a commercial-grade Honda GX630 engine, this hydraulic power pack delivers dependable hydraulic performance for running conveyors, augers, lifts, hydraulic motors, and other compatible implements.
With a 12 GPM hydraulic flow rate and up to 2,250 PSI, the HBHS610GXE provides strong hydraulic output in a skid-mounted design that can be securely mounted to a trailer or application. Its forklift-accessible frame makes it easier to move, load, and position where needed.
This unit is compatible with single-acting or double-acting cylinders and is built for demanding field use, construction sites, agricultural operations, and mobile hydraulic applications.
Key Features & Benefits
✔ Honda GX630 Commercial Engine
Powered by a dependable 688cc Honda GX630 commercial engine for reliable performance and long service life.
✔ 12 GPM Hydraulic Flow
Provides strong hydraulic flow for powering compatible hydraulic tools, cylinders, motors, conveyors, augers, lifts, and implements.
✔ Up to 2,250 PSI
Delivers high hydraulic pressure for demanding job site and equipment applications.
✔ Skid-Mount Design
Securely mounts to your trailer, equipment setup, or application for mobile hydraulic power.
✔ Forklift Accessible
Designed to be easily moved, loaded, or repositioned using a forklift.
✔ Electric Start
Electric start system makes operation easier and more convenient.

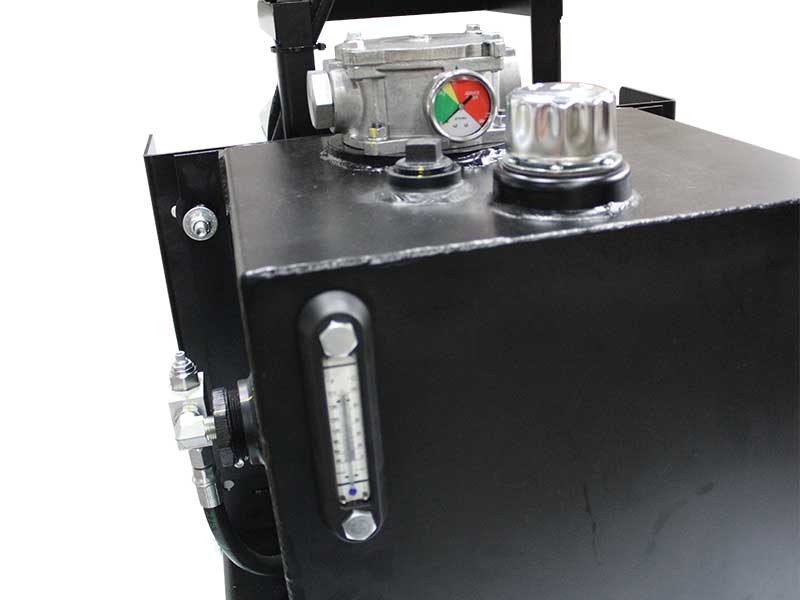

✔ Large Hydraulic Tank
Features a steel hydraulic tank with sight gauge for monitoring oil volume and temperature.
✔ Filter Indicator Gauge
Helps monitor hydraulic filter condition for easier maintenance.
✔ Compatible with Single or Double-Acting Cylinders
Designed for flexible use with a wide range of compatible hydraulic applications.
✔ Helps Reduce Tractor Use
Can help save fuel, hours, and maintenance by powering hydraulic equipment without running a tractor.
Important Notes
- Four-directional control valve lever is sold separately.
- This unit is not intended to be plumbed into a closed-center hydraulic system.
- Always confirm compatibility with your hydraulic equipment before use.
Best Applications
The BravePro HBHS610GXE Hydra Buddy is ideal for:
- Power conveyors
- Augers
- Hydraulic lifts
- Hydraulic motors
- Single-acting cylinders
- Double-acting cylinders
- Mobile hydraulic equipment
- Trailer-mounted hydraulic applications
- Job sites without power or air access
- Agricultural, commercial, and industrial use
Detailed Specifications
| Attribute | Specification |
|---|---|
| Brand | BravePro |
| Model | HBHS610GXE |
| Product Type | Skid-Mount Hydraulic Power Pack |
| Equipment Type | Hydraulic Power Pack |
| Mount Style | Skid Mount |
| Engine Brand | Honda |
| Engine Model | GX630 |
| Engine Displacement | 688cc |
| Horsepower | 20.8 HP |
| Starter | Electric |
| Maximum RPM | 3,600 RPM |
| Maximum PSI | 2,250 PSI |
| Hydraulic Flow | 12 GPM |
| Product Weight | 368 lbs. |
| Dimensions | 48 in. L x 24.5 in. W x 43 in. H |
| Hydraulic Tank Material | 12 Gauge Steel |
| Hydraulic Tank Capacity | 19.2 Gal. Nominal / 17.5 Gal. Actual / 13.5 Gal. Useable |
| Hydraulic Tank Drain Port | 3/4 in. NPT |
| Hydraulic Valve Inlet | 12 ORB Plumbed to Reservoir |
| Hydraulic Valve Outlet | 8 Male JIC Adapter Installed |
| Pump Displacement | .88 CIR |
| Pump Ports | Inlet: 1-1/16-12 ORB / Outlet: 7/8-14 ORB |
| Pump Rotation Direction | Clockwise |
| Warranty | 2 Years Consumer Use / 1 Year Commercial Use |
| SKU | HBHS610GXE |
Package Contents
- BravePro HBHS610GXE Hydra Buddy Skid-Mount Hydraulic Power Pack
- User’s Manual
Recommended Use
The BravePro HBHS610GXE is a strong choice for users who need portable hydraulic power for equipment and job site applications where traditional power sources are not available. Its Honda GX630 engine, 12 GPM output, skid-mount frame, and forklift-accessible design make it ideal for mobile hydraulic work, trailer mounting, and powering compatible hydraulic implements in agricultural, commercial, and industrial environments.
Optional Add-Ons
Disclaimer: Brave® and BravePro® hydraulic power packs are not intended to be plumbed into a closed center hydraulic system
