5" Chipping Capacity • 15 HP 420cc OHV Engine • Reversible Blades • Jobsite Tow Bar

Take on branches, brush, and small trees with the DK2 OPC525-V2 5-Inch Kinetic Drum Chipper. Powered by a robust 15 HP, 420cc OHV engine, this heavy-duty chipper is designed to process material up to 5 inches in diameter for property cleanup, landscaping, acreage maintenance, and demanding outdoor projects.

The kinetic cyclonic drum and dual V-belt direct-drive system deliver strong chipping performance, while the double-edge reversible blades provide extended service life. Tool-free swing-open chutes provide convenient access to the drum for inspection and maintenance, and the discharge chute rotates up to 180 degrees to direct wood chips toward a pile, trailer, or collection area.

The extended feed chute includes integrated equipment-moving handles and an emergency-stop safety control. Large bearing-mounted ATV-style tires, a quick-drop support stand, built-in toolbox, and removable 1-7/8-inch ball tow bar make the OPC525-V2 easier to position and move around suitable jobsites.

Key Features & Benefits

• 5-Inch Chipping Capacity
  Processes compatible trees, branches, and brush up to 5 inches in diameter.
• Powerful 15 HP OHV Engine
  The 420cc gasoline engine delivers strong performance for demanding chipping workloads.
• Kinetic Cyclonic Drum
  Heavy-duty drum design helps pulverize branches and brush into manageable wood chips.
• Dual V-Belt Direct Drive
  Transfers engine power efficiently to the chipping drum for dependable operation.
• Double-Edge Reversible Blades
  Chipper blades can be reversed to expose a fresh cutting edge and extend usable service life.
• Tool-Free Swing-Open Chutes
  Both chutes open without tools to simplify drum access, inspection, and routine maintenance.
• 180° Adjustable Discharge Chute
  Rotates without tools to direct chips toward the preferred collection or discharge area.
• Extended Feed Chute
  Oversized feed design helps accommodate longer branches and brush.
• Emergency-Stop Control
  Integrated E-stop provides a convenient way to shut down operation in an emergency.
• Integrated Moving Handles
  Handles built into the feed chute make it easier to reposition the chipper around a work area.
• ATV-Style Tires and Rims
  Bearing-mounted tires provide improved mobility across suitable off-road and jobsite surfaces.

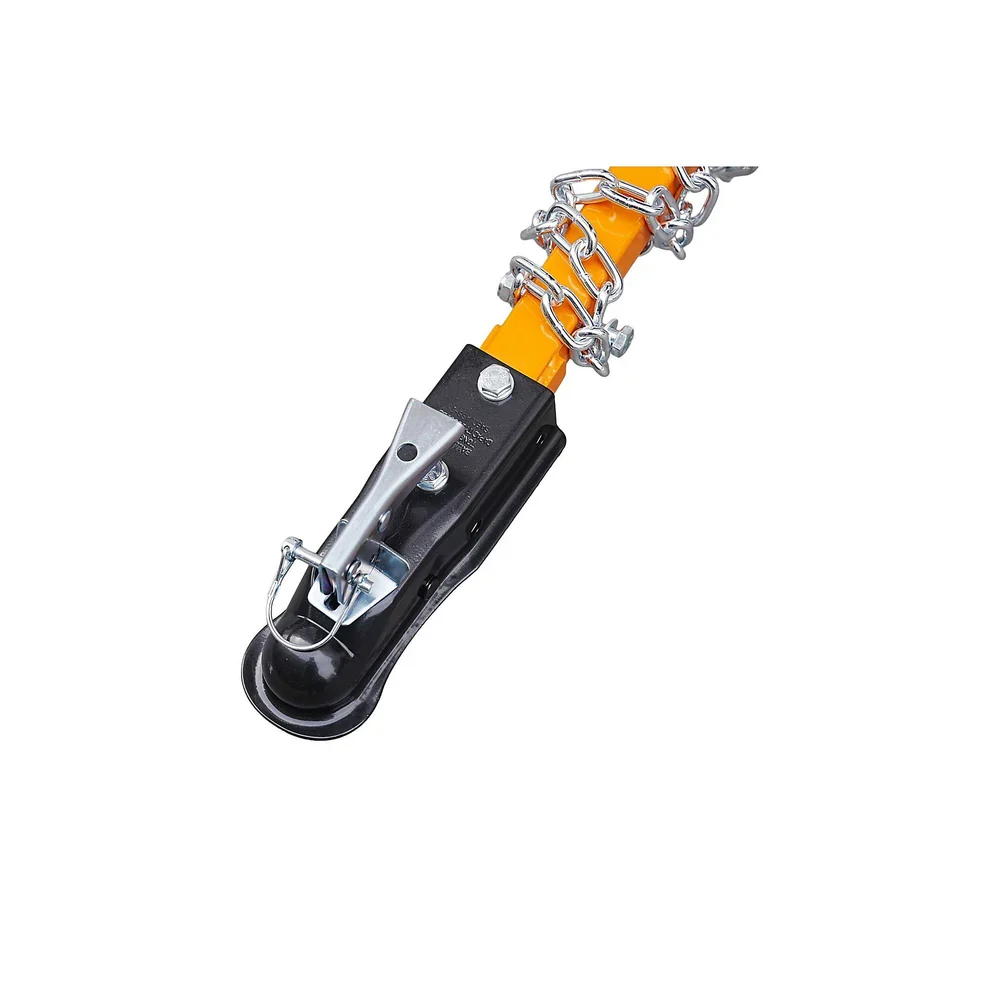

• Removable Tow Bar
  Includes a 1-7/8-inch ball coupler for moving the chipper around compatible properties and jobsites.
• Quick-Drop Support Stand
  Helps stabilize the chipper when disconnected from the tow vehicle.
• Built-In Toolbox
  Provides convenient storage for small tools and maintenance items.

Ideal Applications

The DK2 OPC525-V2 is well suited for:

• Tree limb and branch cleanup
• Brush disposal
• Acreage and property maintenance
• Landscaping projects
• Farm and rural property use
• Storm debris cleanup
• Creating mulch and wood chips
• Moving between work areas on a jobsite

Quick Specifications

Specification	Details
Brand / Model	DK2 OPC525-V2
Equipment Type	Kinetic Drum Chipper
Engine	15 HP, 420cc OHV
Maximum Chipping Capacity	5 in.
Net Torque	18.4 ft.-lbs. / 25 Nm
Drive System	Dual V-Belt Direct Drive
Cutters	Double-Edge Reversible Chipper Blades
Feed System	Auto-Adjusting for Material up to 5 in.
Discharge Chute	Tool-Free Swing Open, 180° Adjustable
Coupler Size	1-7/8 in.
Tires	175/70-6, 13.5 in. Outside Diameter
Rims	6 in. × 4.5 in. Bearing-Mounted ATV Rims
Product Dimensions	91 in. L × 30 in. W × 46 in. H
Product Weight	308.6 lbs.
Shipping Dimensions	35.8 in. L × 22 in. W × 37.8 in. H
Shipping Weight	352.7 lbs.

Package Contents

• DK2 OPC525-V2 5-Inch Kinetic Drum Chipper
• Removable tow bar
• User manual

Important Operating and Towing Information

Always read and follow the operator’s manual before use. Wear proper eye, hearing, hand, foot, and protective clothing when operating the chipper. Never feed rocks, metal, wire, vines, or other non-wood material into the machine.

The included tow bar is intended for moving the chipper around suitable properties and jobsites. Do not tow on public roads unless the manufacturer specifically confirms that the unit and towing setup meet all applicable road-use requirements.

Check out the optional Safety Barricade.
