120 lb. Capacity • 5–24 ft. Spread Pattern • For UTVs and Hitch-Equipped Lawn Equipment

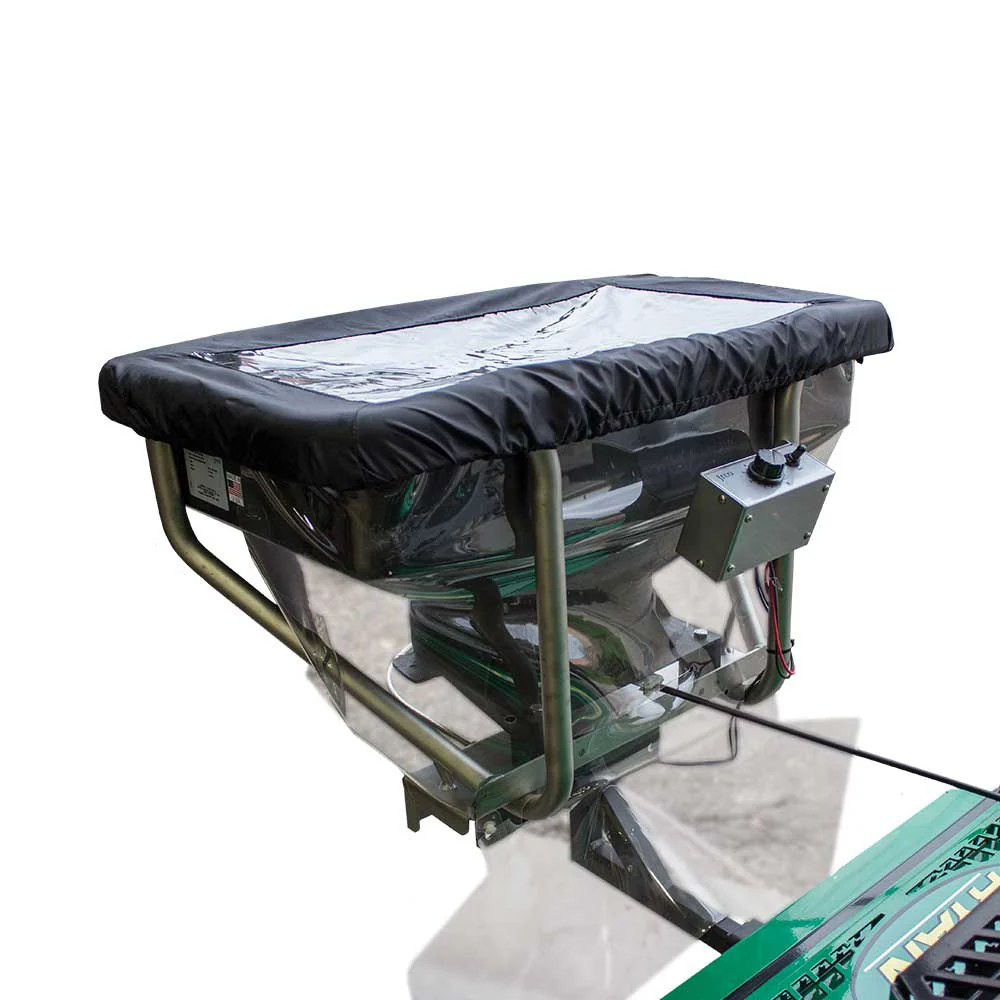

The JRCO 506U.JRC Electric Broadcast Spreader is a heavy-duty hitch-mounted spreader designed for side-by-side utility vehicles, stand-on aerators, and compatible mowers or blowers equipped with a square hitch receiver.

Built to improve productivity at higher ground speeds, this spreader combines a large 120 lb. / 2.2 cu. ft. hopper with a sealed 12-volt brushless motor, electronic fan-speed control, and a pattern-centering adjustment for accurate material distribution.

The push-pull cable control provides convenient operation from the vehicle, while the stainless steel frame, vibrating agitator, and non-gumming gate system help deliver dependable performance when spreading granular and pelletized fertilizer.

Key Features & Benefits

• Brushless 12V Electric Motor
  JRCO-engineered, sealed, direct-drive motor provides greater power, efficiency, and dependable commercial performance.
• Hitch-Mount Design

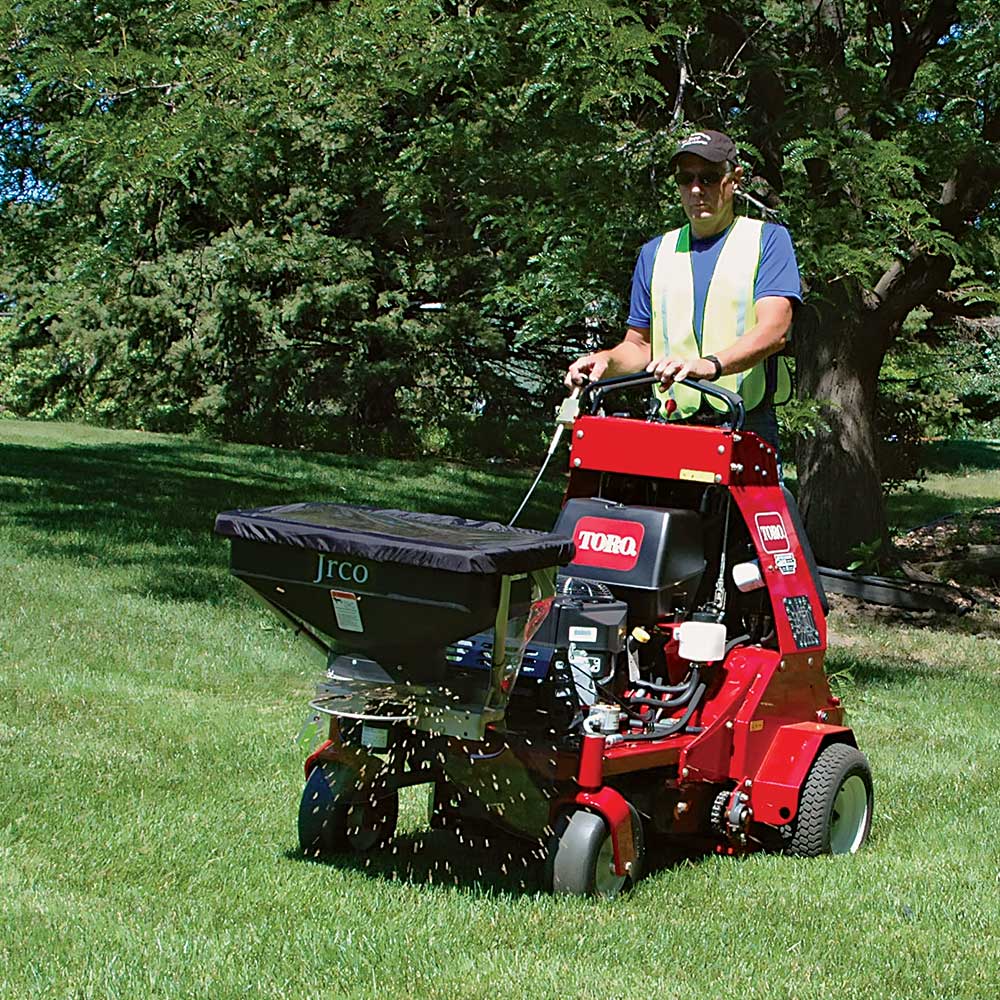

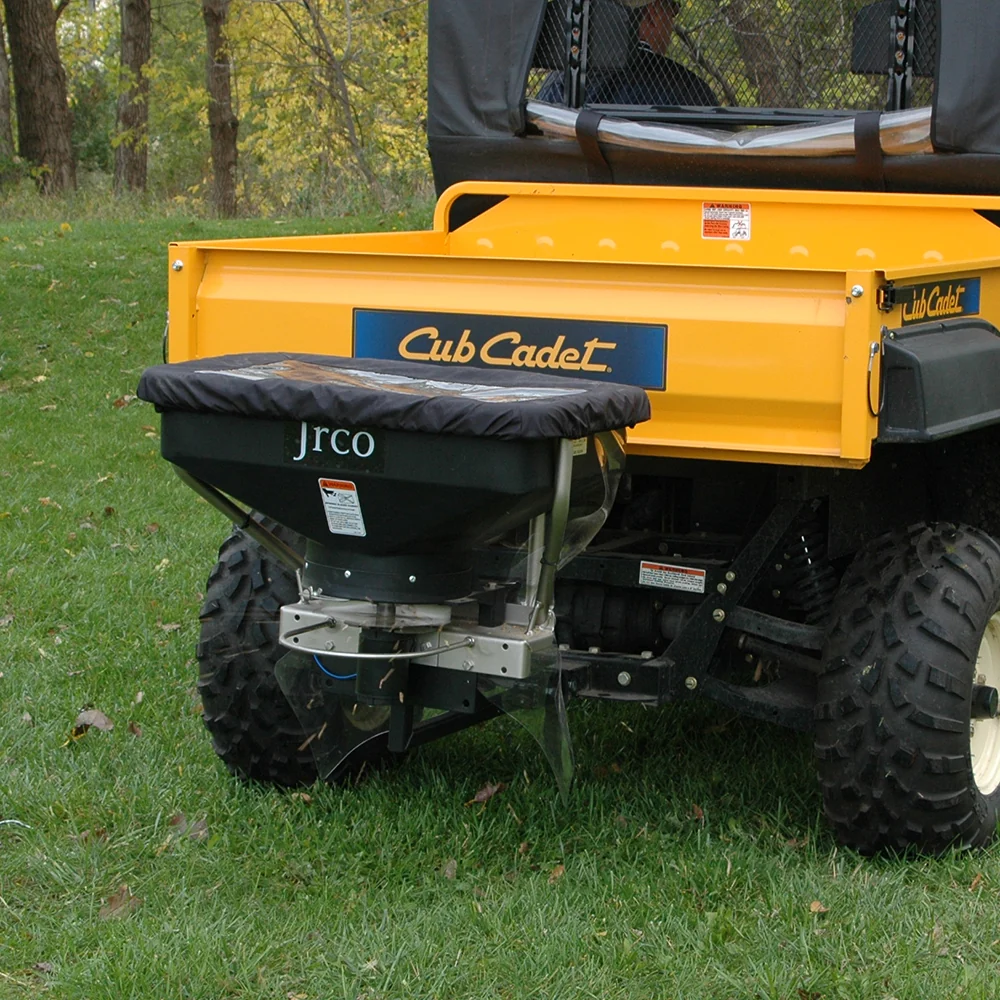

  Attaches to side-by-side UTVs, stand-on aerators, and compatible mowers or blowers equipped with a square hitch receiver.
• Push-Pull Cable Control
  Provides convenient control for utility vehicle and hitch-mounted applications.
• 120 lb. Hopper Capacity
  Large 2.2 cu. ft. polyethylene hopper reduces refill frequency on larger spreading jobs.
• 5–24 ft. Spread Pattern
  Adjustable spread width supports a variety of materials and application requirements.
• Electronic Fan-Speed Control
  Governs fan speed to help maintain an accurate and consistent spread width.
• Pattern-Centering Adjustment
  Helps create a uniform pattern when switching between different granular and pelletized materials.
• Stainless Steel Tubular Frame
  Rugged, corrosion-resistant construction built for demanding commercial use.
• Stainless Steel Vibrating Agitator
  Breaks up lumps and promotes consistent material flow.
• Non-Gumming Stainless Steel Gate
  Designed for smooth opening and tight closure for better application control.
• Four-Blade Stainless Steel Fan
  Removes easily for cleaning and routine maintenance.
• Clear Moisture Cover and Rear Dust Shield
  Helps protect the spreading material, equipment, and operator.
• Easy-to-Read Opening Gauge
  Front-mounted adjustment gauge makes accurate setting changes easier.
• Secure, Wiggle-Resistant Mounting
  Stainless steel bolts wedge the broadcaster firmly into the hitch mount.
• Protected Motor and Fan
  Stainless steel bumper helps shield critical components during use.
• Waterproof Wiring Harness
  Includes sealed connectors and a protective rain cap.
• JRCO Broadcast Spreader Manual - 506U.JRC

Important: A compatible JRCO receiver/spreader hitch is required and sold separately. Choose 125S.JRC, 125L.JRC, or 200S.JRC, depending on the equipment application.

Compatible JRCO Hitch Options

The following receiver/spreader hitches are sold separately:

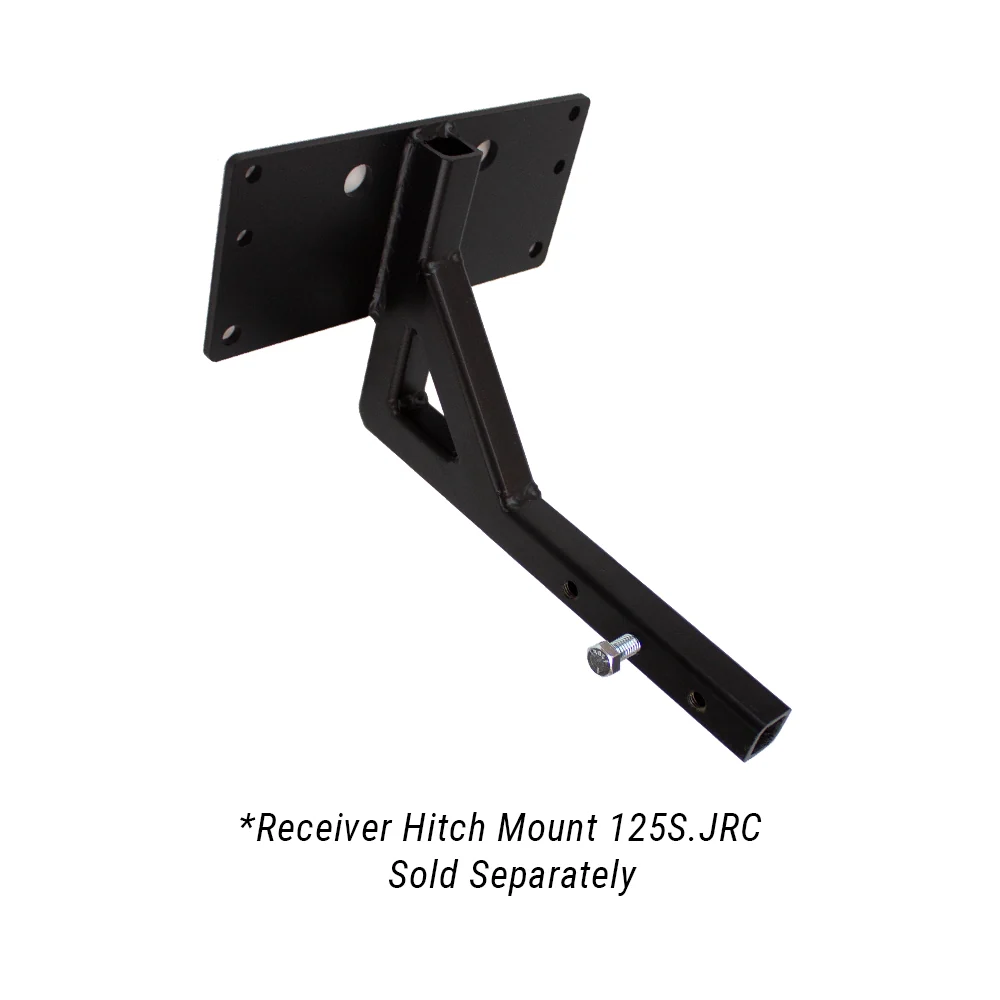

• 125S.JRC

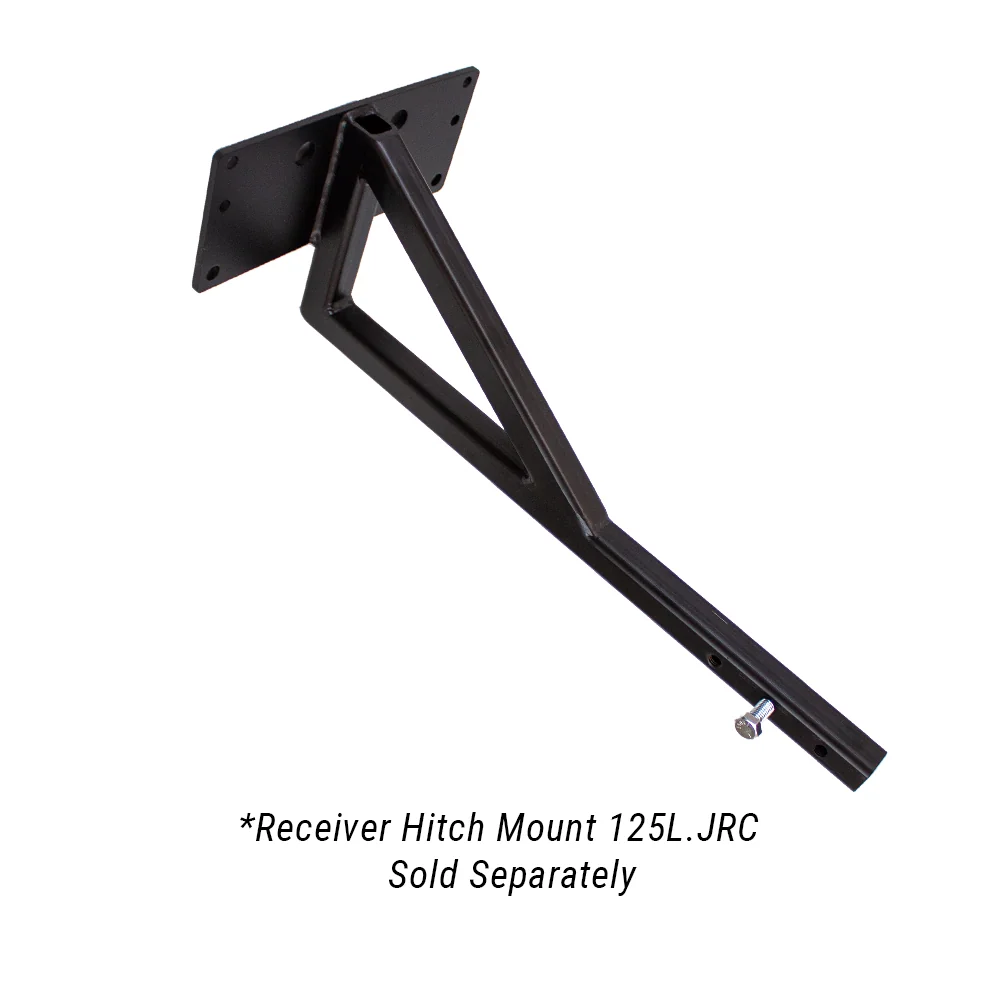

• 125L.JRC

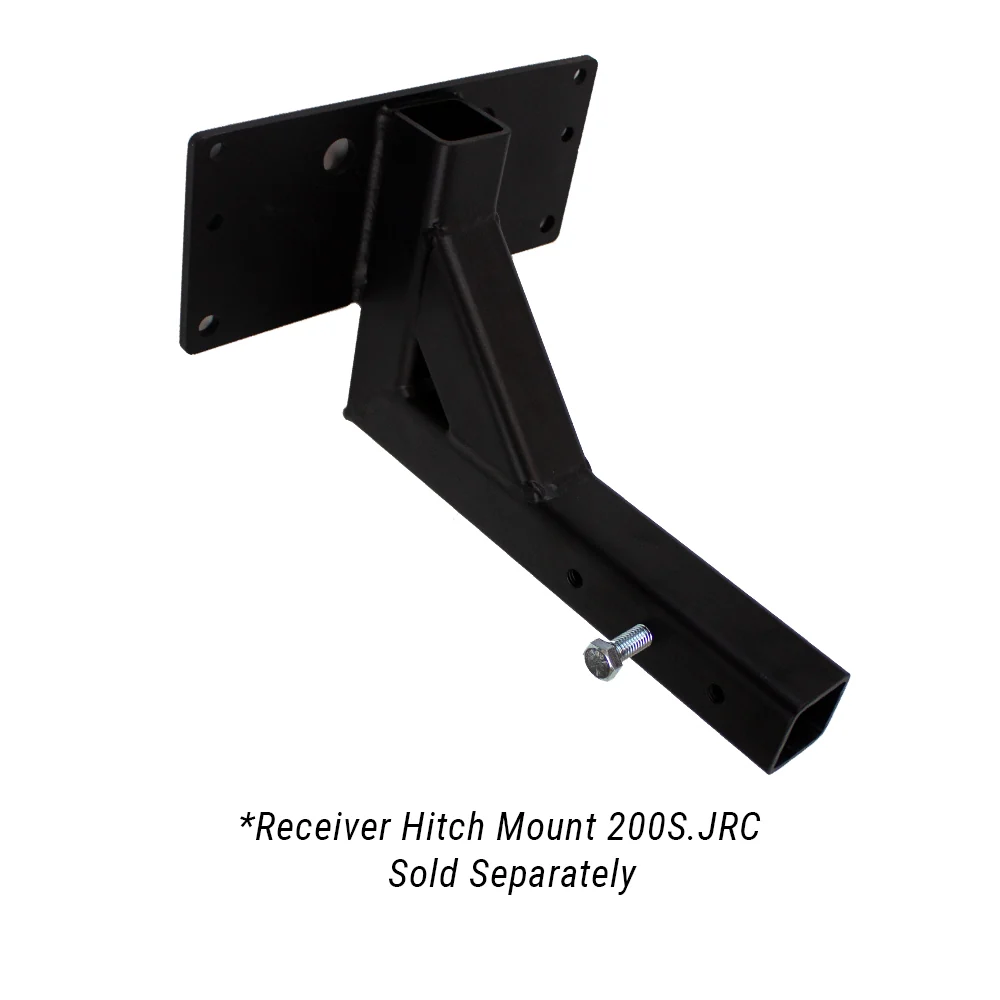

• 200S.JRC

Confirm the correct hitch for the specific UTV or lawn equipment before ordering.

Optional Accessories

• Optional (for purchase) stainless screen sifts lumps from bulk fertilizers.
• Optional (for purchase) side deflector kit with plastic cup and stainless steel brackets fits all JRCO models.
