550 lb. Load Capacity • 59" Maximum Lift Height • Foot-Pedal Hydraulic Operation

Lift, position, and transfer materials with less physical effort using the Super Handy GUO146 Hydraulic Material Stacker. Built with a durable steel frame, this manually operated stacker supports loads weighing up to 550 lbs. and raises them to a maximum height of 59 inches.

The foot-operated hydraulic system provides smoother, easier lifting than traditional manual-winch designs. Its hydraulic cylinder automatically regulates lifting speed according to the load, helping provide controlled and dependable operation when loading, positioning, or transferring materials.

Because the GUO146 requires no fuel, battery, or electrical connection, it offers quiet, emissions-free operation with minimal maintenance. A balanced frame, four-wheel design, polyurethane wheels, and mechanical brakes provide stable movement and secure positioning in warehouses, workshops, loading areas, and other material-handling environments.

Key Features & Benefits

• 550 lb. Maximum Load Capacity
  Handles a wide range of equipment, cargo, supplies, drums, and other compatible materials.

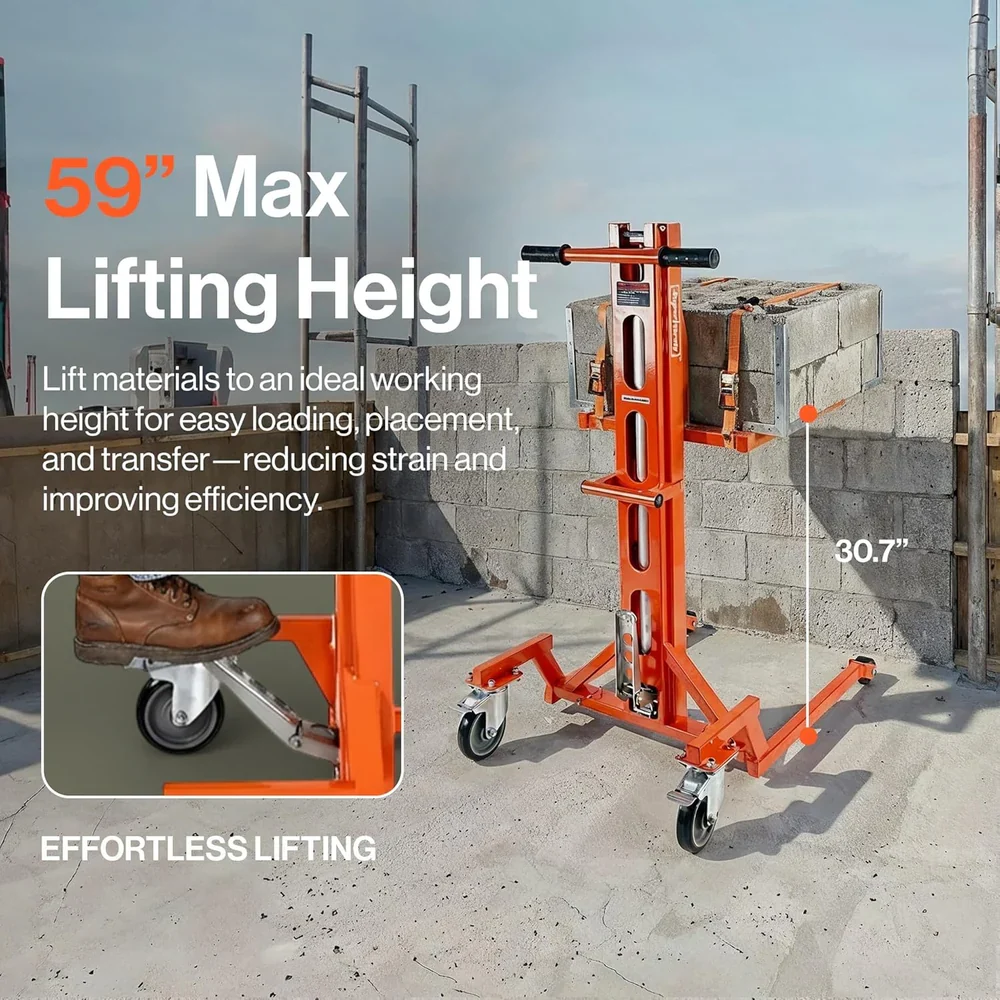

• 59-Inch Maximum Lift Height
  Raises loads to a convenient working height for placement, loading, unloading, and transfer applications.
• Foot-Pedal Hydraulic Lift
  Allows the operator to raise loads smoothly without relying on an electric motor or manual winch.

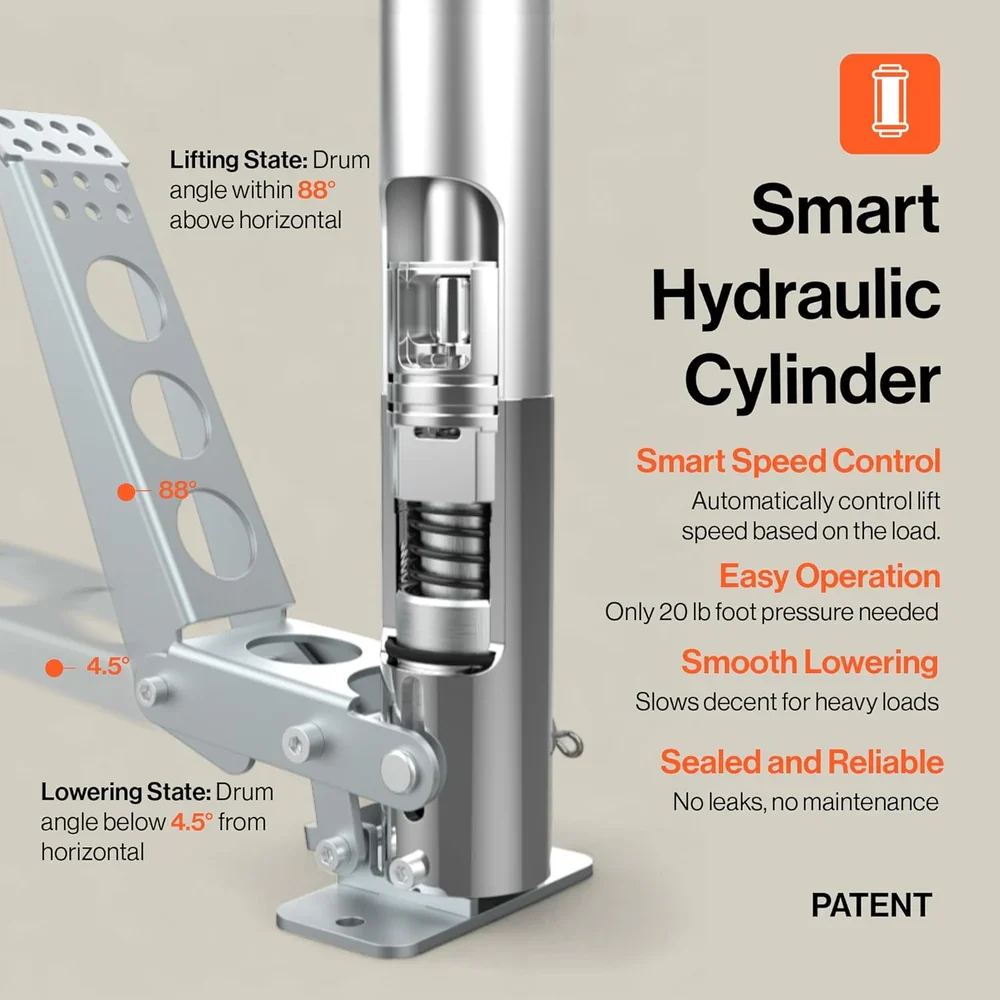

• Controlled Lifting Performance
  The hydraulic cylinder adjusts lifting speed based on the load for smooth, predictable operation.
• Manual, Emissions-Free Operation
  Requires no fuel, batteries, charging, or electrical outlet, making it suitable for indoor and outdoor work areas.
• Durable Steel Frame
  Heavy-duty construction provides the strength and stability required for demanding material-handling tasks.

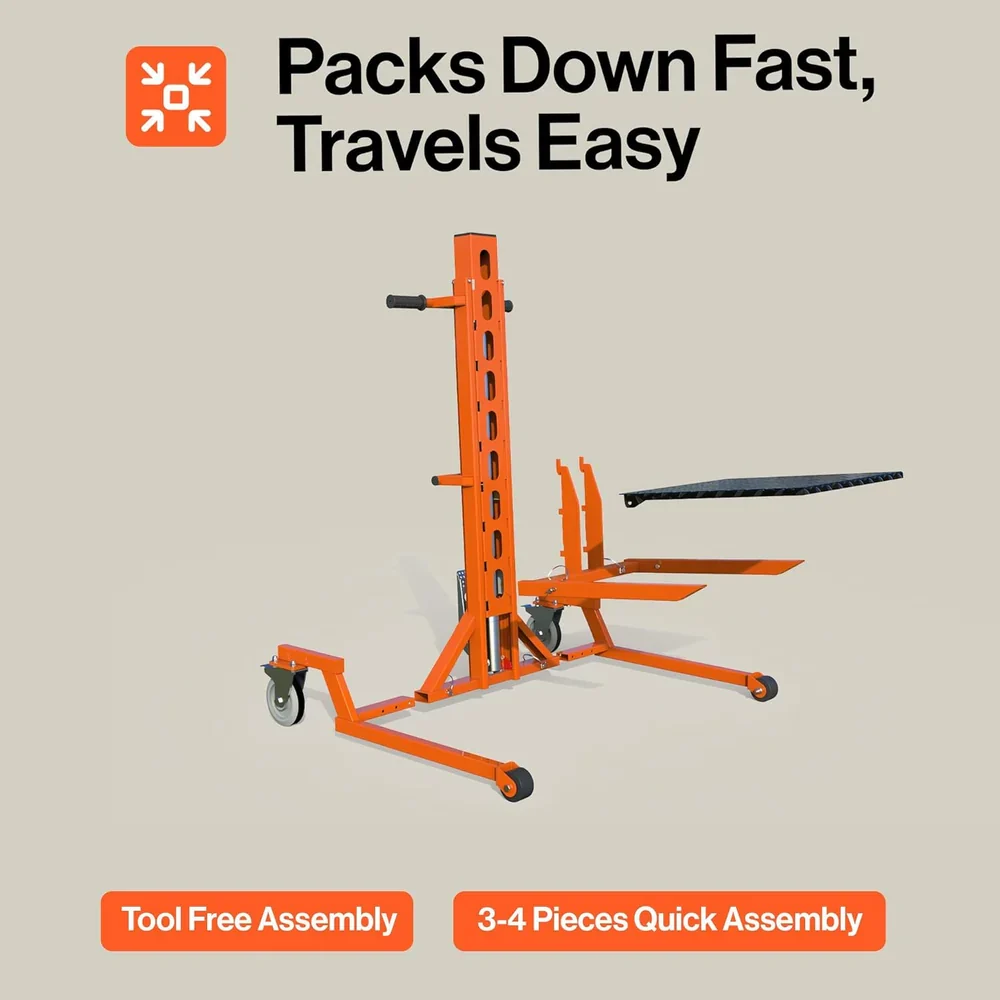

• Portable, Modular Design
  Disassembles into approximately three or four manageable components for easier transportation and storage.
• Components Under 50 lbs.
  The heaviest individual component weighs less than 50 lbs., making the stacker easier to load into a van or truck when disassembled.

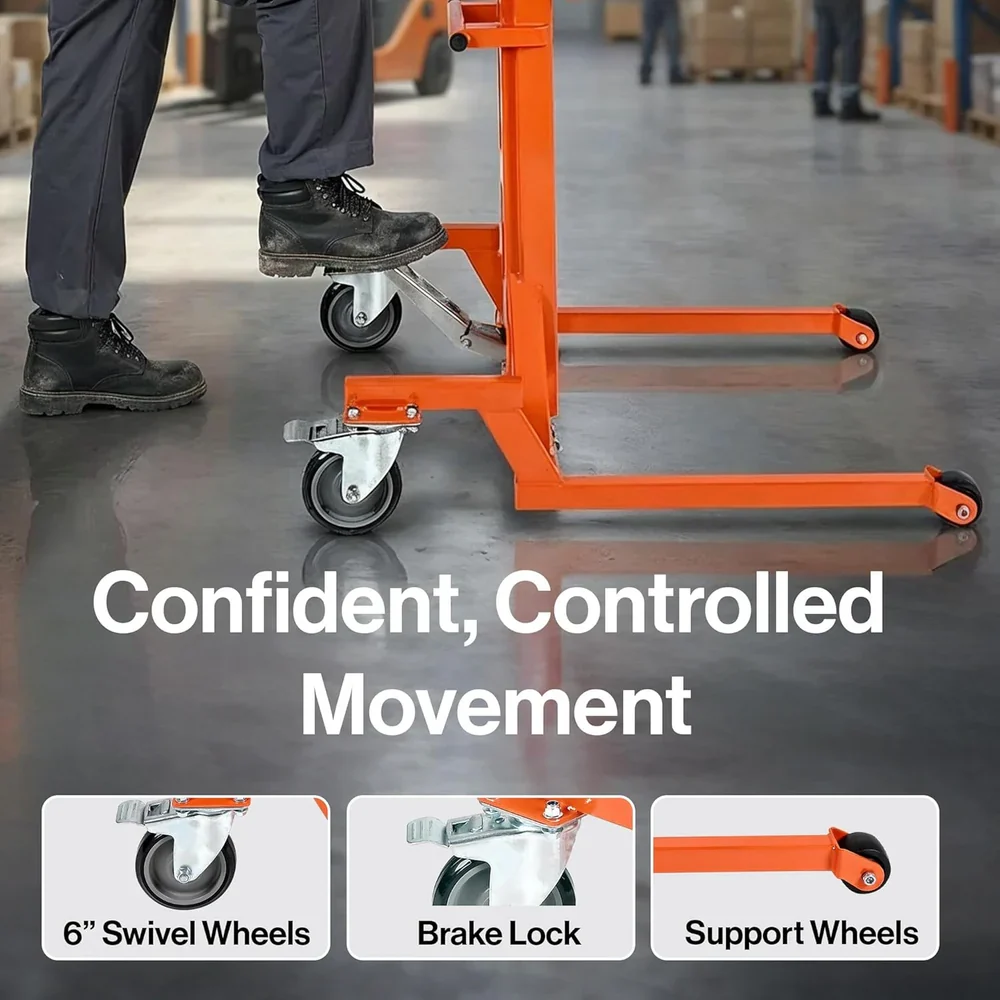

• Six-Inch Polyurethane Wheels
  Durable PU wheels provide smooth movement across compatible warehouse, shop, and loading-area surfaces.
• Mechanical Wheel Brakes
  Help hold the stacker securely in position during lifting, lowering, loading, and unloading.
• Low-Maintenance Design
  Manual hydraulic operation reduces ongoing maintenance and operating costs compared with powered lifting equipment.

Ideal Applications

The Super Handy GUO146 is well suited for:

• Warehouses and stockrooms
• Loading and unloading trucks
• Workshops and garages
• Factories and production areas
• Shipping and receiving departments
• Retail storage areas
• Positioning drums, cargo, equipment, and supplies
• Raising materials to workbenches, platforms, or loading heights

Quick Specifications

Specification	Details
Brand / Model	SuperHandy GUO146
Equipment Type	Manual Hydraulic Material Stacker
Maximum Load Capacity	550 lbs.
Maximum Lift Height	59 in.
Lift System	Hydraulic Foot Pedal
Operation	Manual
Frame Material	Steel
Number of Wheels	4
Wheel Size	6 in.
Wheel Material	Polyurethane
Braking System	Mechanical Wheel Brakes
Product Dimensions	41.3 in. × 29.5 in. × 50.4 in.
Product Weight	116.6 lbs.

Package Contents

• Super Handy GUO146 Hydraulic Material Stacker
• User Manual GUO146

Important Use Information

Do not exceed the stated 550 lb. maximum load capacity. Center and secure the load before lifting or transporting it. Engage the mechanical brakes during loading, unloading, lifting, and lowering, and operate the stacker only on stable surfaces appropriate for material-handling equipment.
